Pvc Sheet Parma Rigid Pvc Sheet Rolls for Thermoforming
  • Category:7.PVC Packing film
  • Product Description:

    Yancheng Kingbull Materials Technology Co.,Ltd. was established in 2009, and the state key high-tech enterprise is located inYanCheng,Jiangsu,China. we are a professional large-scale manufacture of Water based glue , themal lamination film,packing film.The product rangecovers the mainland, North America, Yemen, Dubai,Vietnam,Syria,Colombia,Saudi Arabia Thailand,Colombia,Philippines ,Mexico,UZ,Australia,Mongoliaand other countries.

  • YANCHENG KINGBULL MATERIALS TECHNOLOGY CO.,LTD

    Contact:Mr Peter

    Address:NO.288 JIeFang Road,Zhongnan Century City YanCheng City,JIangSu Province ,China Postcode:224001.
    Tel:+86 515 88171436 Fax:+86 515 88130612

    MT:8613851082103  Wechat&What's App:+8613851082103
    Email:chinabestcorp@vip.163.com or info@king-bull.com

Product details

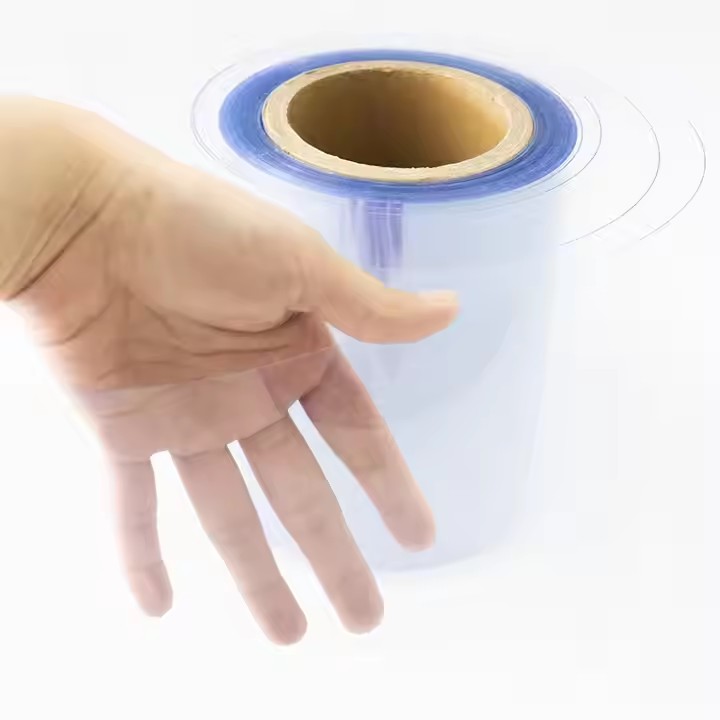

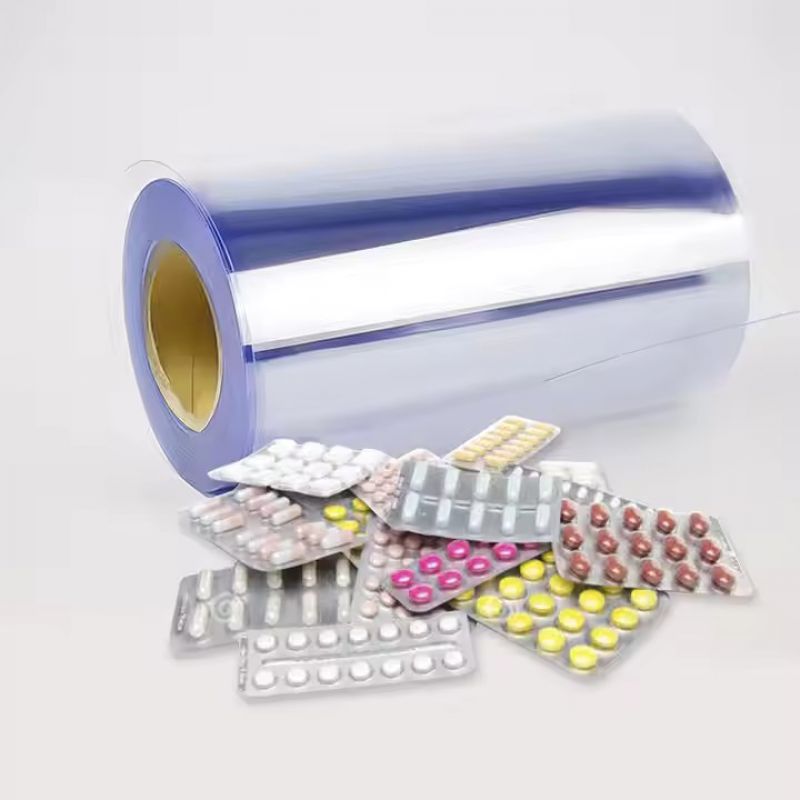

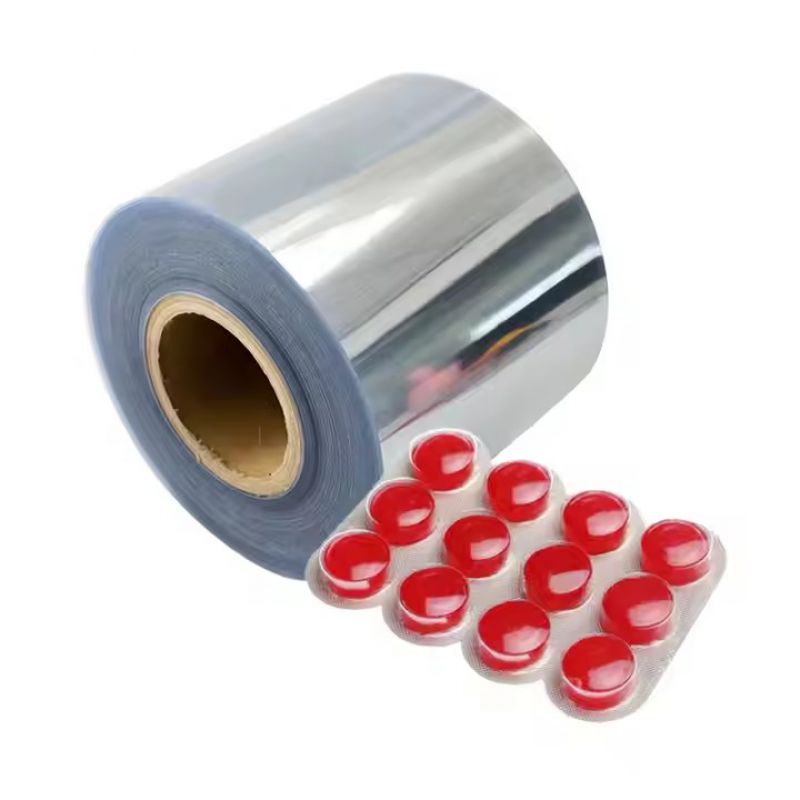

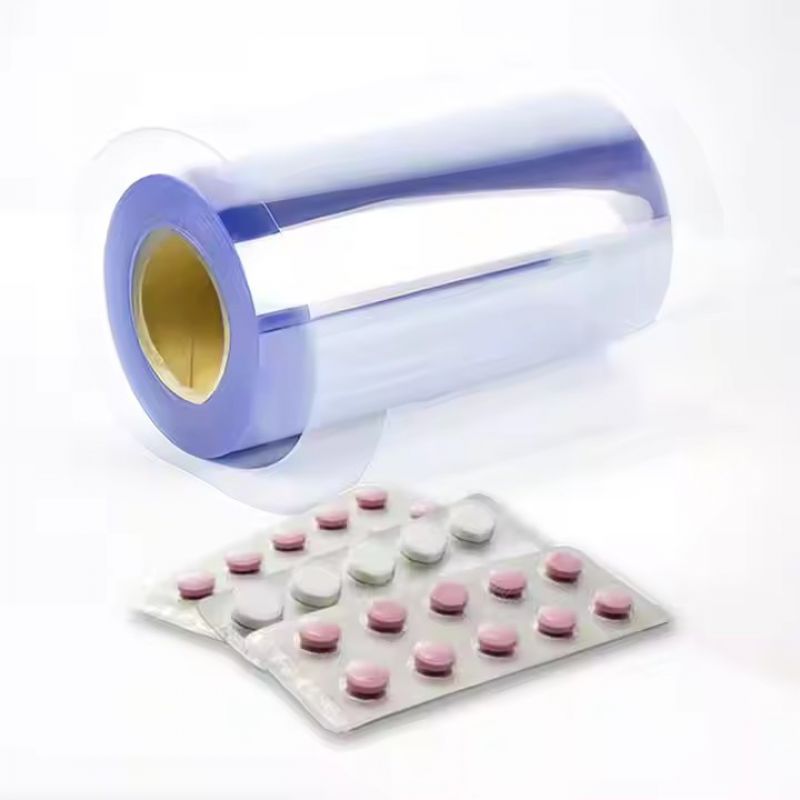

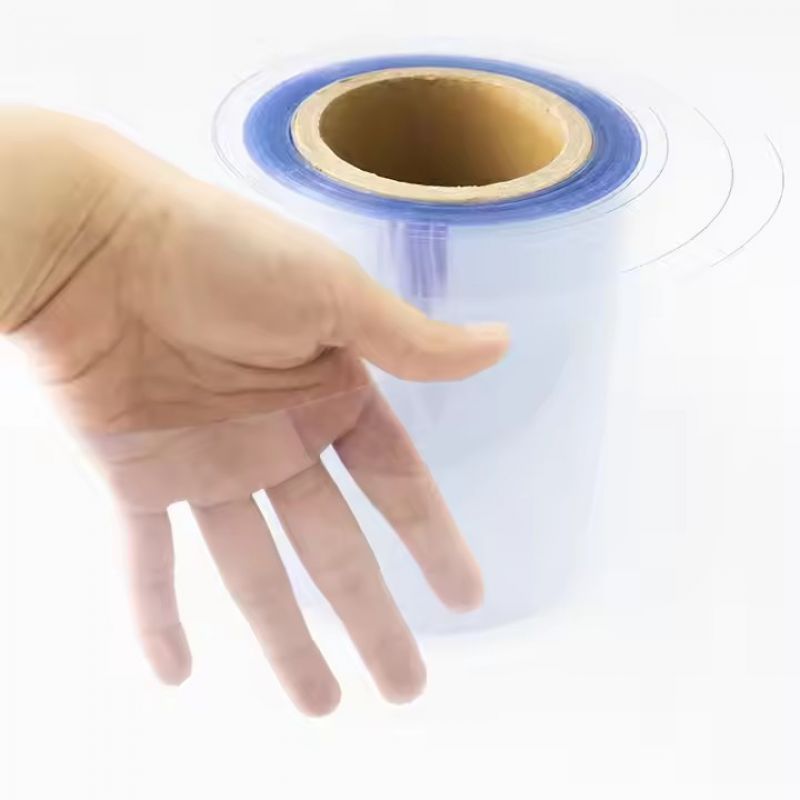

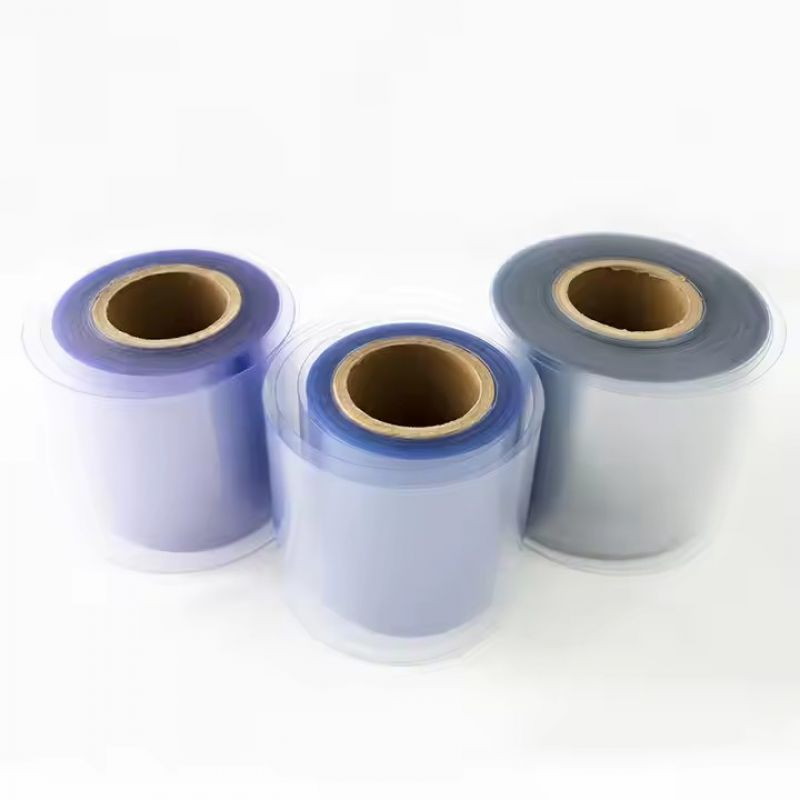

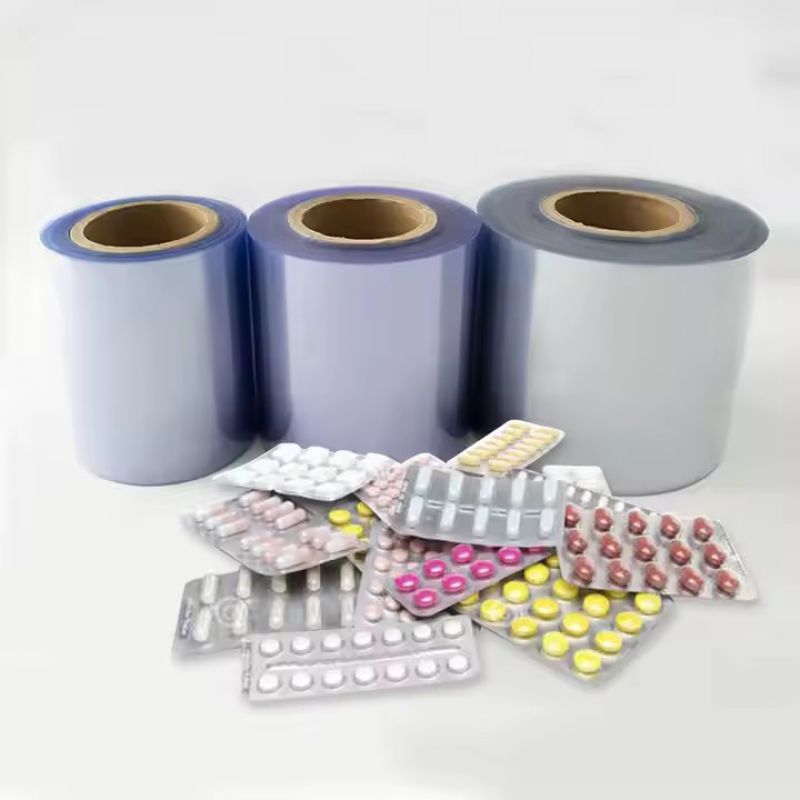

Moisture Proof Medicine Grade PVC Rigid Film

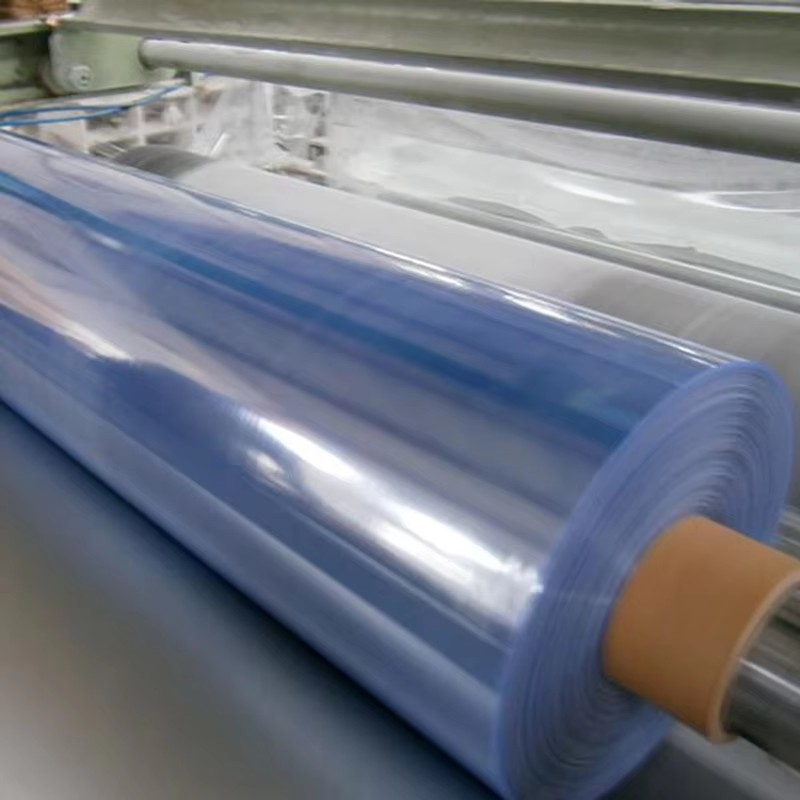

PVC rigid film is a packing material manufactured by calendering with highly luster,tramsparent,easily to thermoform,packing for

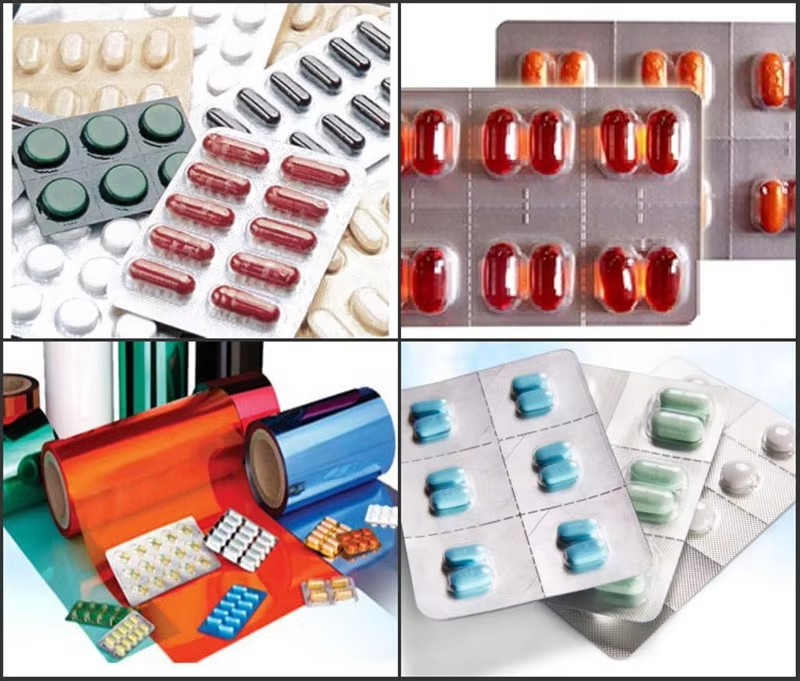

medicine(including tablet,capsule,suppository) of plastic and aluminum foil for blister package.
Characteristics:
-Surface of base film:golssy
-Colors of base film:transparent clear,other transparent colors or request
-Thickness range of base film:0.10mm-0.50mm
-Max Width:660mm
-Density:1.36g/cm³
Features:
-High transparency
-No smell
-Non-toxic glossy surface
-Good thermoforming and good sealing with aluminium foil






Specification

Item
Property
Index
Test Method
Phusical Performance
Density
1.36 g/cm3
ASTMD792
IV Viscosity
0.7 dl/g
Plastech Mtd
Temperature Range
-10~60

Mechanical Behavior

Tensile Strength
TD>47 Mpa

ASTM D680

MD>48

Breaking Strength
TD>47 Mpa
ASTM D680

MD>48
Breaking elongation
200%
ASTM D790

Antistatic
Surface Resistance
10P6~10P11
Plastech Mtd
Optics property
Haze
< 5%
Plastech Mtd
RoHS
Pb,Cd,Hg,CrP+6P
PBBs, PBDEs
xppm
SGS
